To facilitate your testing requirements, our temperature cycling chambers can be customized with a variety of options such as ports - which may be installed on the door or in unrestricted locations on the chamber - hinged and window doors as well as adjustable shelves. The options availabe on the EC0X chambers are listed below. Please contact Sun if you have custom requirements.


  • Chamber Ports
  • Shelves
  • Window Doors
  • Chamber Racks
  • Electronic Failsafe
Port Circular ports are available from 1" to 4" and may be installed on the left side and unrestricted areas on the right, top or bottom as well as the door.
Our chambers can also be equipped with one or more adjustable shelves. The shelf rack rests on clips which may be positioned from the bottom to the top of the work space as needed.
All of our chambers can be equipped with a viewing window on the door.

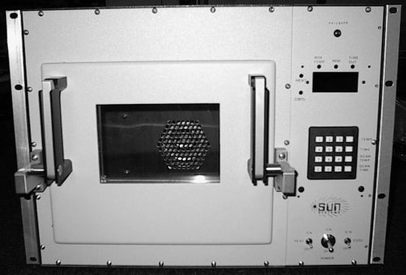

RackEC0AFor customers with multiple chambers that need to save space, we also manufacture a variety of racks for most of our chambers. We offer 4 chamber racks for our EC01 model chambers, 2 chamber racks for our EC02/03 model chambers and 3 chamber racks for our EC02/03 model chambers. Our EC0A model chambers come with rack ears for mounting in a standard 19" rack.
Limit ModuleThe Electronic Failsafe (Limit Module) is a reliable, user friendly failsafe mechanism. This module may be installed on the EC0X chamber and allows the user to set an upper and lower temperature limit trip point via two potentiometers located on the module. It features an LCD to display the upper and lower temperature limit trip point as well as the current air temperature inside the chamber. It also provides GFI (Ground Fault Interrupt) protection.
