TEMPERATURE CHAMBER - ET1 MODEL

ET1-2 TEMPERATURE CYCLING CHAMBERTemperature Test Chamber Model ET1-2The ET1 temperature test chamber is our smallest chamber based on overall exterior dimensions. To accomplish this, the chamber's controller is separate from the chamber chassis. A 6 ft. cable connects from the chamber to the controller. The ET1 chamber comes standard with a window hinged door, circular ports on both the top and bottom of the chamber and both a chamber and user probe. The chamber uses horizontal air flow with convection style heating, has a temperature range of -184°C to 315°C and incorporates a user adjustable bi-metal thermostat for upper temperature limit protection in addition to user adjustable software upper and lower temperature limits. The chamber uses the PC100-2 temperature controller - a dual sensor, single channel, 1/4 DIN controller with a user-friendly interface as well as an IEEE488 (GPIB), RS232/RS422/485 interface for remote control capability. Sun also offers the ET2 model temperature chamber, which is similar to the ET1 with an additional 3" of vertical work space.

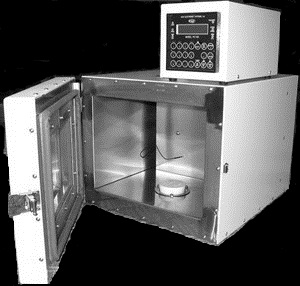

Temperature Test Chamber - Model ET1-2

ET1 TEMPERATURE CHAMBER SPECIFICATIONS:

  • Power: 1400 Watts
  • Voltage (frequency): 110/220 VAC (50/60Hz)
  • Heat/cool rate: 20C/min
  • Air flow: 60 CFM
  • Workspace Dimensions: 10.5" (W) x 8.0"( H) x 8.0" (D)
  • Chamber Volume: .39 ft 3
  • Overall Dimensions: 13" (W) x 11" (H) x 20" (D) (includes 3" for motor)
  • Controller dimensions: 5 1/8" (W) x 5" (H) x 9.5" (D)
