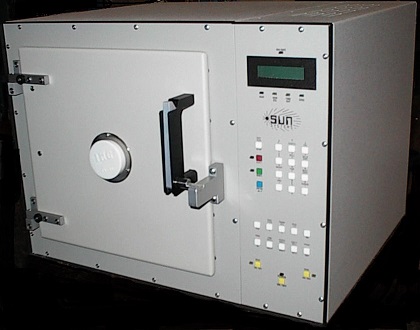

The CE approved EC1x models are our most customizable temperature test chambers. They are available in sizes ranging from 0.37 ft³ to 6.16 ft³ of working volume. The EC1X uses vertical air flow with convection style heating and has a temperature range of -184°C to 315°C (using LN2) and -73°C to 315°C (using LCO2). The EC1X uses the advanced and extremely flexible TC10 controller to provide features such as non-volatile memory to store user temperature profiles and parameters, an additonal probe (for monitoring and control of product temperature), adjustable ramp rate, power down restart, etc. Built in IEEE-488 (GPIB), RS232/RS422 remote interfaces allow uploading & downloading of user temperature profiles and data logging.
The EC1x model temperature chambers can be customized to suit your testing needs. Optional features such as circular ports, adjustable shelves and window doors can be installed to facilitate test set up and fixtures inside the work space. An N2 gas purge is available to provide a nitrogen atmosphere during high temperature testing. Coolant features such as 2 or 3 tank auto switching valves, LN2 auto line purge and redundant valves are available to accomodate user cooling requirements. The summary table below can be used to compare the EC1x models.
